Holybro Pixhawk 6X Pro Autopilot H753 Flight Controller Module Standard Base V2A/V2BPM02D Racing Airplane Aircraft

type : Multi-function Sprayer Drone agriculture use

Barometer : BMP388

maximum pesticide load : Other

private mold : No

Place of Origin : China, GuangdongChina

MOQ : 1 piece

Price : $705-725 / piece

power : electricity

Capacity : 1

material : Metal, Plastic

FMU Processor : STM32H753

Brand : HolyBro

Function : Flight controller

IO Processor : STM32F103

Contact Now

Product Features
Function	Flight controller
Barometer:	BMP388
IO Processor:	STM32F103
material	Plastic, Metal, chip
Capacity	1
FMU Processor:	STM32H753
maximum pesticide load	Other
private mold	No
place of origin	Guangdong,China
power	electricity
type	Multi-function Sprayer Drone, agriculture use

Features

          * FMU Processor: STM32H753
 * 32 Bit Arm Cortex-M7, 480MHz, 2MB flash memory, 1MB RAM
 * IO Processor: STM32F103
 * 32 Bit Arm Cortex-M3, 72MHz, 64KB SRAM
 * On-board sensors

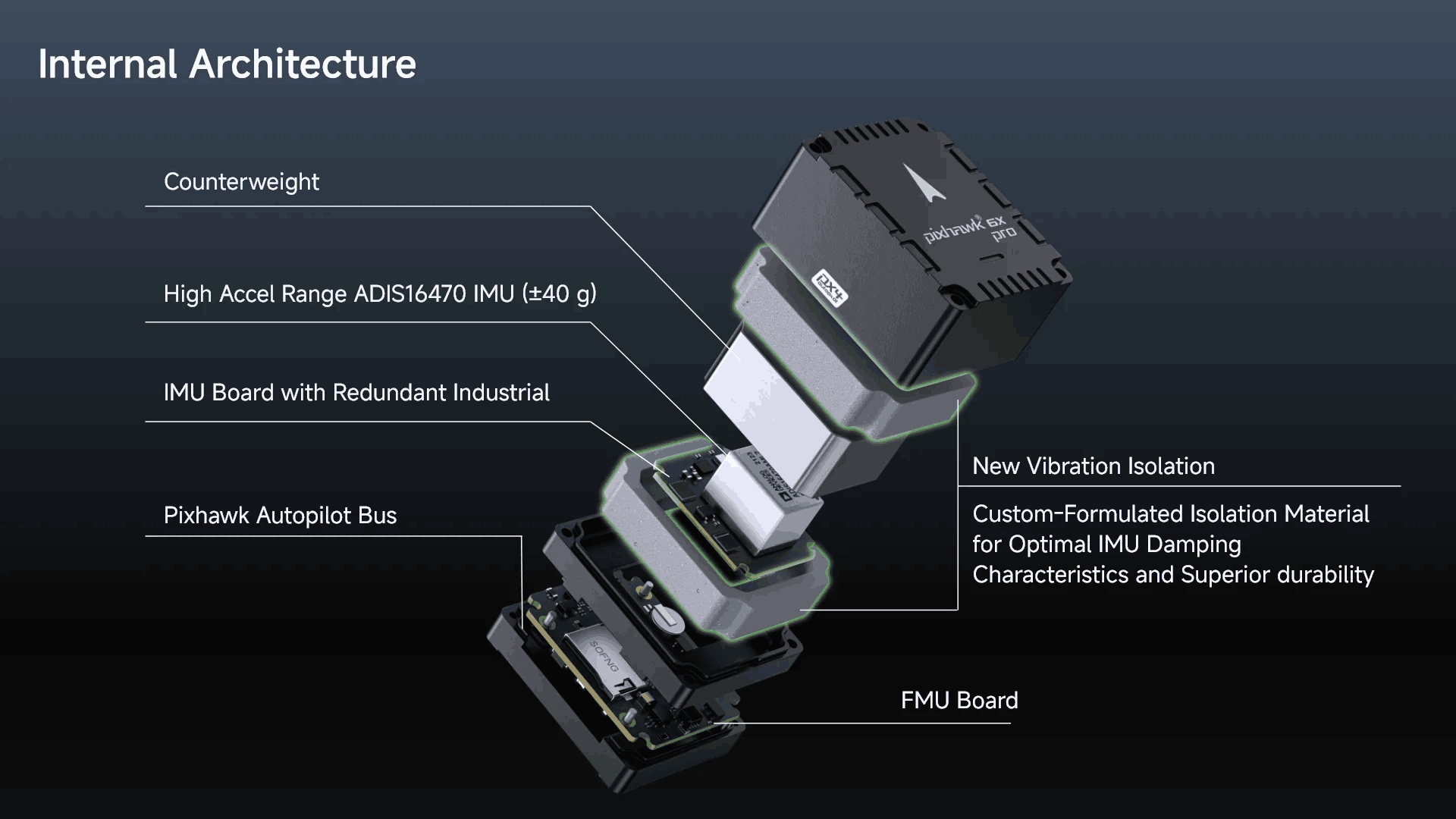

 * Accel/Gyro: ADIS16470 * ±40g, Vibration Isolated, Industrial IMU Accel/Gyro: IIM-42652 * ±16g, Vibration Isolated, Industrial IMU
 Accel/Gyro: ICM-45686 with BalancedGyro Technology * ±32g, Hard Mounted
 Barometer: ICP20100Barometer: BMP388Mag: BMM150 Electrical data
 * Voltage Ratings:
 * Max input voltage: 6VUSB Power Input: 4.75~5.25VServo Rail Input: 0~36V
 * Current Ratings:
 * Telem1 output current limiter: 1.5AAll other port combined output current limiter: 1.5A
 Mechanical data
 * Dimensions
 * Flight Controller Module: 38.8 x 31.8 x 30.1mmStandard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)Mini Baseboard: 43.4 x 72.8 x 14.2 mm
 * Weight
 * Flight Controller Module: 50gStandard Baseboard: 72.5g (A


Product Description

Holybro Pixhawk 6X Pro Autopilot H753 Flight Controller Module Standard Base V2A/V2BPM02D Racing Airplane Aircraft

Package Includes
SKU 11070 includes:
* Pixhawk 6X Pro Flight Controller Module
SKU 20260/20261 includes:
* Pixhawk 6X Pro Flight Controller Module

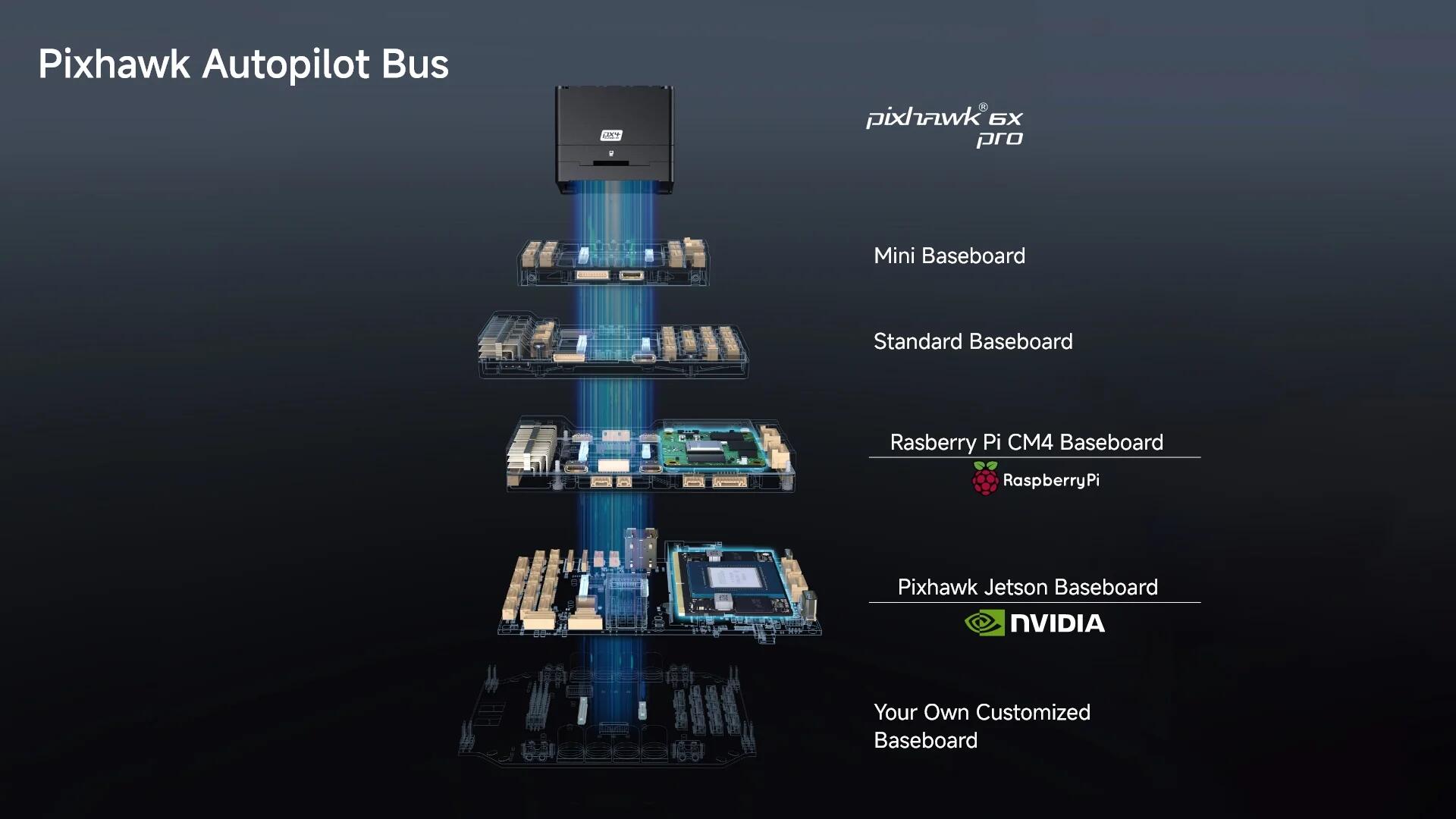

* Pixhawk Standard Baseboard / Mini Baseboard
* PM02D HV Power Module
* Cable Set
