Holybro H-Flow with DroneCAN Protocol Integrated Optical Flow and Rangefinder Module

Name: Holybro HFlow with DroneCAN Protocol Integrated Optical Flow and Rangefinder Module
Brand: 2, Holybro
Price: 100 USD

China Holybro H-Flow with DroneCAN Protocol Integrated Optical Flow and Rangefinder Module wholesale

Material : Aluminum, PVC

Brand Name : 2, Holybro

Single package size : 20X20X20 cm

Single gross weight : 2.000 KG

Weight : Weight:

Selling Units : Single item

MOQ : 1 bag

private mold : No

Product name : olybro H-Flow with DroneCAN Protocol Integrated

compatible brand : DJI

Price : $100-138 / bag

Place of Origin : Zhejiang, China, Zhejiang, China

Contact Now

Product Description

Holybro H-Flow with DroneCAN Protocol Integrated Optical Flow and Rangefinder Module

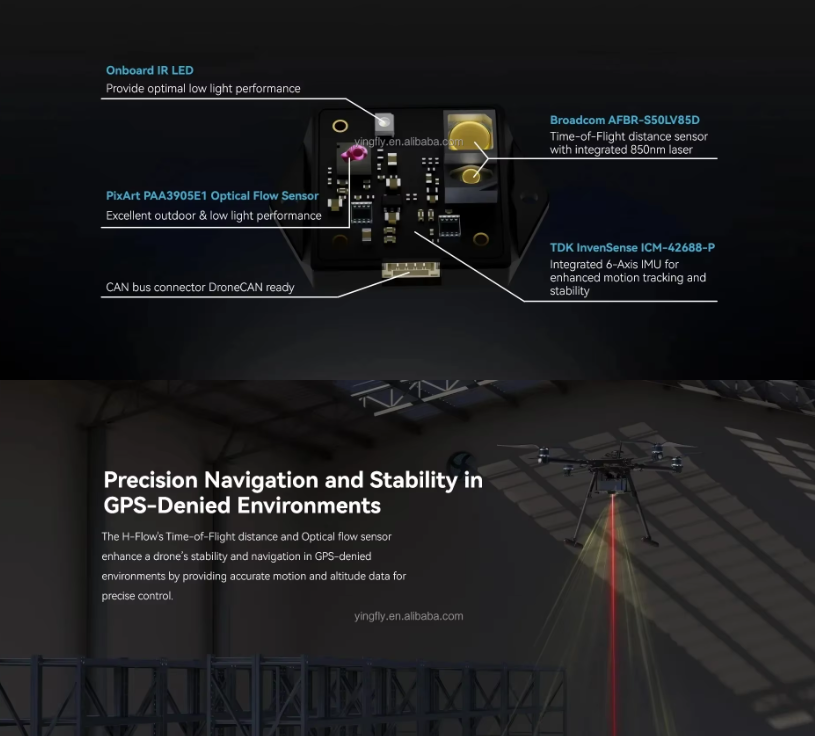

The Holybro H-Flow is a compact optical flow and distance sensor module that combines a PixArt PAA3905E1 optical flow sensor, a Broadcom AFBR-S50LV85D distance sensor, and an InvenSense ICM-42688-P 6-axis IMU. This all-in-one design simplifies installation, while the onboard infrared LED enhances visibility in low-light conditions.

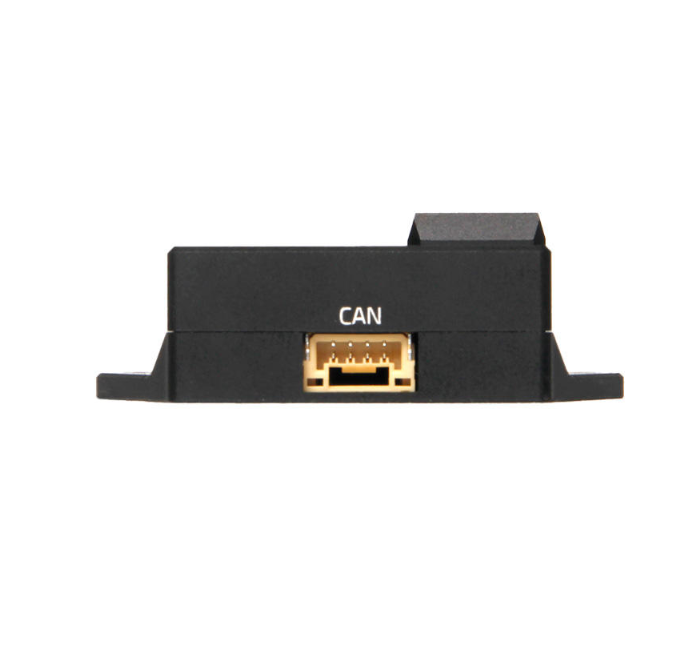

The H-Flow features a Pixhawk-standard 4-pin CAN connector, ensuring seamless integration with Pixhawk-compatible controllers via the CAN port. Utilizing the DroneCAN protocol, it offers reliable and high-speed data transmission between the sensor and the flight controller.

Feature
* Integrated Optical Flow and Rangefinder Module
* PixArt Optical Flow Sensor for Accurate Motion Tracking
* Broadcom ToF Sensor for Precise Distance Measurement
* Infrared LED for Optical Low-Light Performance
* DroneCAN Protocol

Specification
* PixArt PAA3905E1 Optical Flow Sensor * Tracks under low light conditions of >5 lux
* Effective Viewing angle up to 42°
* Wide working ranges from 80mm up to 30m
* Up to 7.4 rad/s
* 40mW IR LED built onto the board for improved low-light operation

* Broadcom AFBR-S50LV85D Time-of-Flight Distance Sensor * Integrated 850 nm laser light source
* Field-of-View (FoV) of 12.4° x 6.2° with 32 pixels
* Typical distance sensing range up to 30m
* Operation of up to 200k Lux ambient light
* Works well on all surface conditions
* Transmitter beam of 2° x 2° to illuminate between 1 and 3 pixels

* InvenSense ICM-42688-P 6-Axis IMU
* STM32F412CEU6 MCU
* Pixhawk Standard CAN Connector (4 Pin JST GH)
* Compact Form Factor
* Software-Controlled CAN Termination

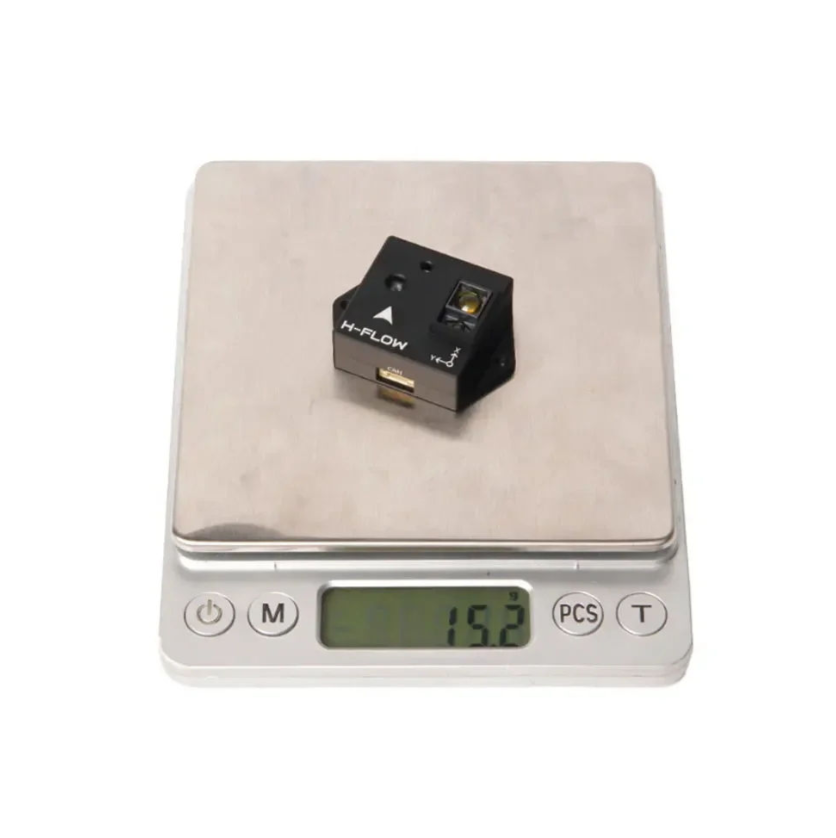

* Weight: 15.2g (3.5g without casing)

Reference Links
* Setup Guide
* Firmware Setup & Upgrade
* Pinout
* AFBR-S50LV85D Datasheet

Package Includes:
* 1x H-Flow
* 4-pin GH cable
* 2x M2.5 Screws
* 2x M2.5 Nylon Locking Hex Nuts
